Manual on finding flawed research data

Thallarcha Lechrioleuca invites  Flashmob #CleanYourScience

By Dayo Maor

The problems related to cut and paste of spectra become so massive that it is sufficient to type in any 2-3 research terms into Google image search, and then to scroll down for images to find some copy-paste examples. How many you will find depends on research field? Some are more infected, some less. I could hardly believe it myself, but now it is tested in randomly selected research fields.

Science need your help to reveal the true scale of this problem. Therefore, I invite everybody to join our FlashMob #CleanYourScience. Anyone who played “memory” or “spot the differences” game will be able to find problematic research data which are worth further questioning. You don’t need to be scientist to spot these issues. Below I provide detailed instructions how to search for problems and provide examples.

Introduction

The idea is very simple: we spent an hour or two (or as much as you can) to scan research data for problems and to post it all on PubPeer or in social networks, or as a comment below this article. You can choose to add hashtag to your posts to mark our Flashmob:  #CleanYourScience. It might be hard to believe but already after spending 5-10 minutes you are very likely to find clearly problematic figures.

Don’t believe me? Feel welcome to do this experiment and to see for yourself. I will be happy to know if your own research field is clean!

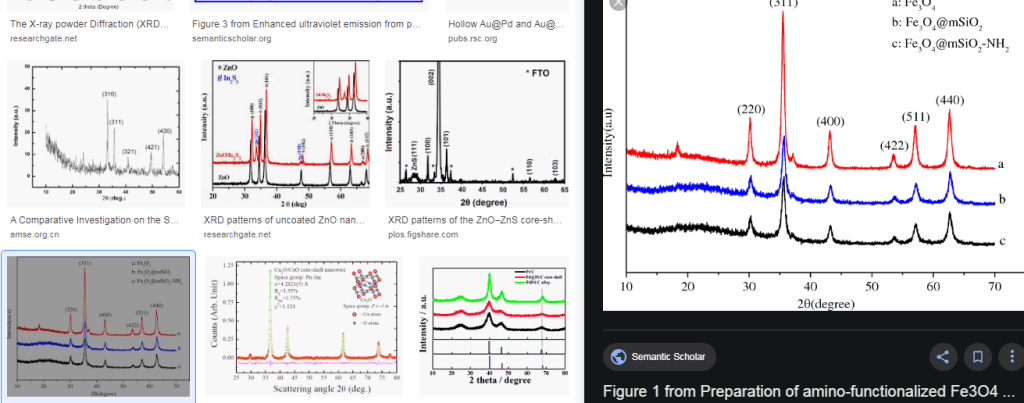

Our main tool is Google image search. Examples of search: first word is name of material, e.g. “nanoparticles” , second word is the method like “spectra” or “XRD” or “Raman” or whatever else. Both XRD and Raman spectra are typically recorded with unique random noise. Any other spectroscopy methods which provide well-visible noise are also worth to be checked. Name of material can be replaced with name of device, e.g. battery, fuel cell, solar cell etc.

As an experiment I googled several rather general combinations of words. Almost all of them sooner or later revealed problematic figures. After a while, I realized that one person can’t handle so much work. That is how idea of this Flashmob was born.

That is why I am asking you, dear readers, to help Science to correct itself. Take your own research field or random area of interest and invest time to reveal true scale of the problem. It will help to clean up your own research field, it will help to save time of many researchers, it will save a lot of money wasted on attempts to reproduce fake results.

 Experimental procedures

We start with easy case of “core shell” and “XRD”. Thanks to Smut Clyde for his publications about core-shell nanoparticles we know it is rather problematic research field.

Step 1   Type in Google “core shell” and “XRD”

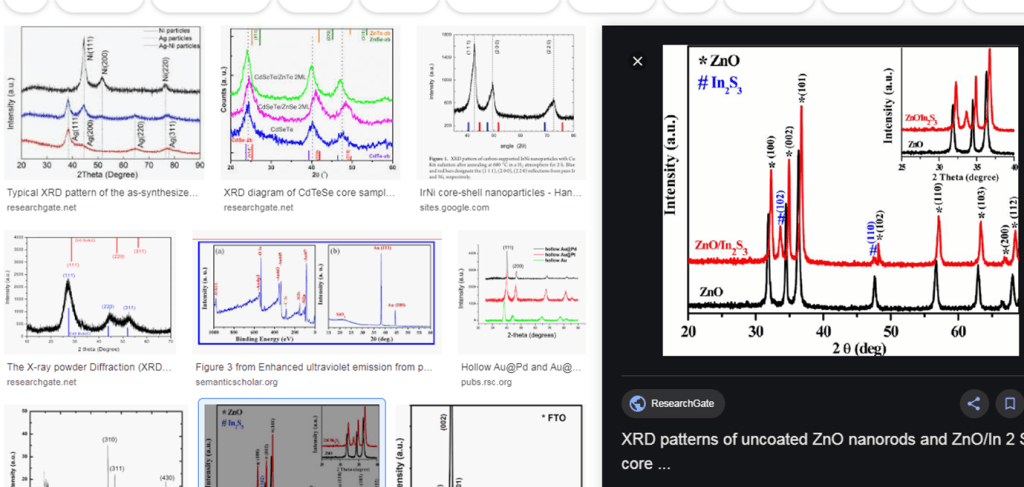

Step 2.  Click on images. Now scroll down images until you might see something strange. Click on a suspect image to see enlarged variant. In most cases it is sufficient to reveal some problems, in other cases one need to download paper and to magnify images. What will you see on screen partly depends on previous searches. While writing this post, I saw the following:

The figure which I found in the third line of images attracts my attention. I zoom on background and find some unexpected similarities. It is not yet on PubPeer.

Vaidya et al J Nanoparticle Res 2010. DOI: 10.1007/s11051-009-9663-5

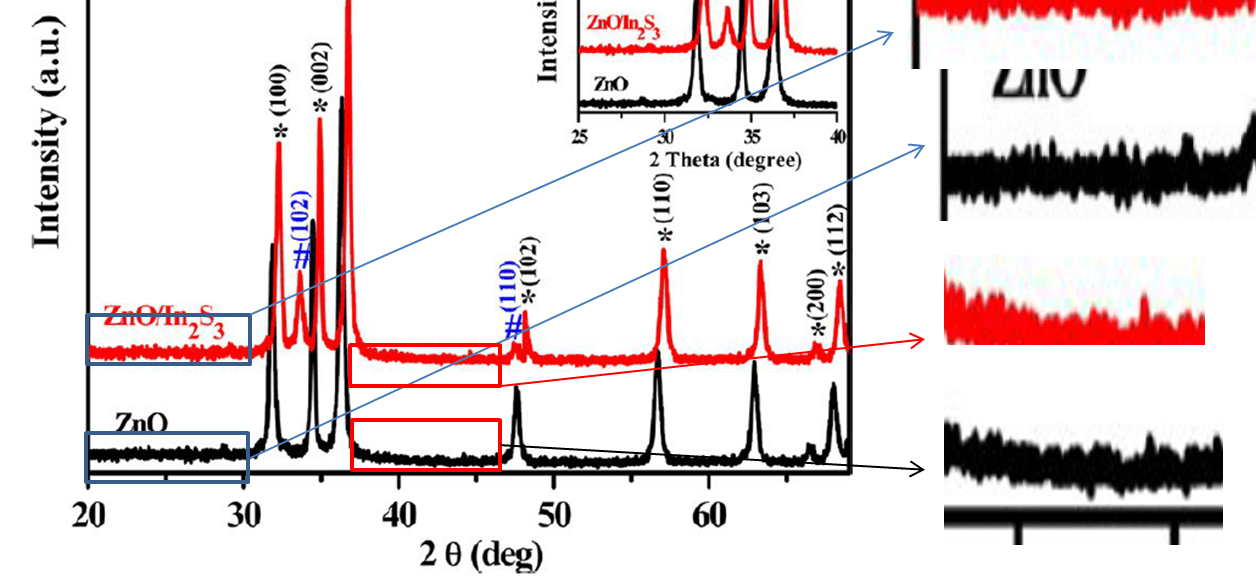

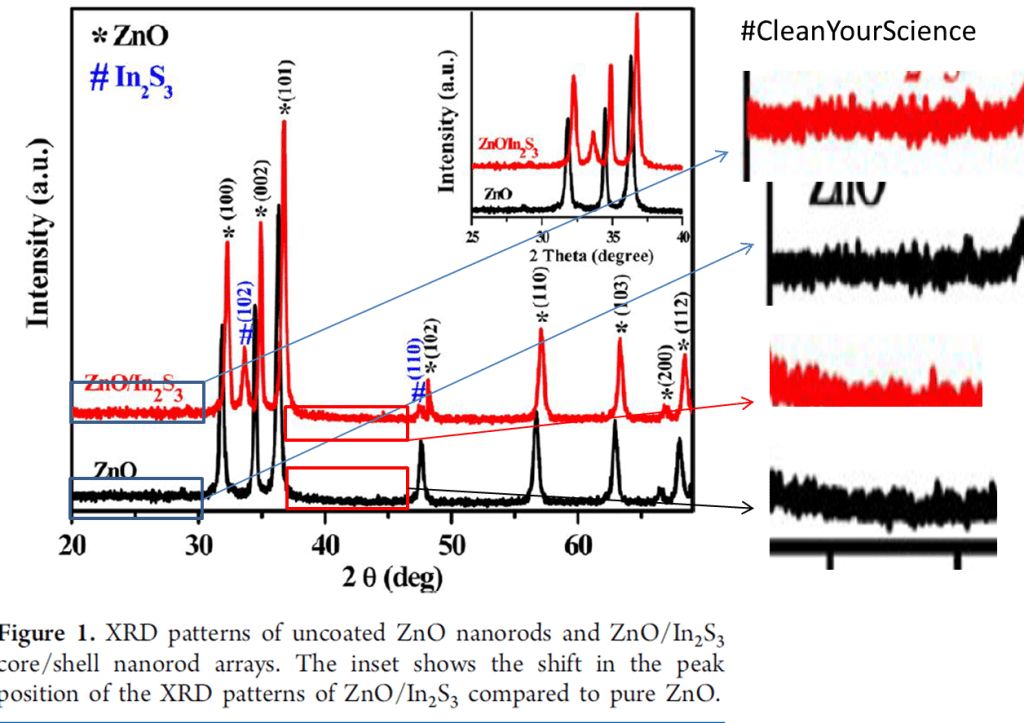

The figure claims to show difference between ZnO and ZnO/In2S3.  I zoom on small sections of background and shift them relative to each other to find out that the noise pattern is identical. The inset of the figure claims that this shift is natural property of materials. How the peaks of In2S3 were added to the XRD pattern I can only guess. Leonid once introduced the concept “Zombie Scientists”.  “Zombie spectra”  is suitable name for dead spectra produced by cut- and- paste method.

Results

One line of images below I found this figure:

Meng et al J Haz Mat 2018, DOI: 10.1016/j.jhazmat.2017.07.062

The patterns b and c are identical. That is not yet smoking gun but something worth to ask authors to explain.  It can be simple human error but in any case, one which requires a correction. The patterns supposed to represent different samples. That one is already on Pubpeer and I scroll down.

Next one is much more difficult to explain with human error because there are two pairs of identical patterns  slightly shifted to show temperature trend:

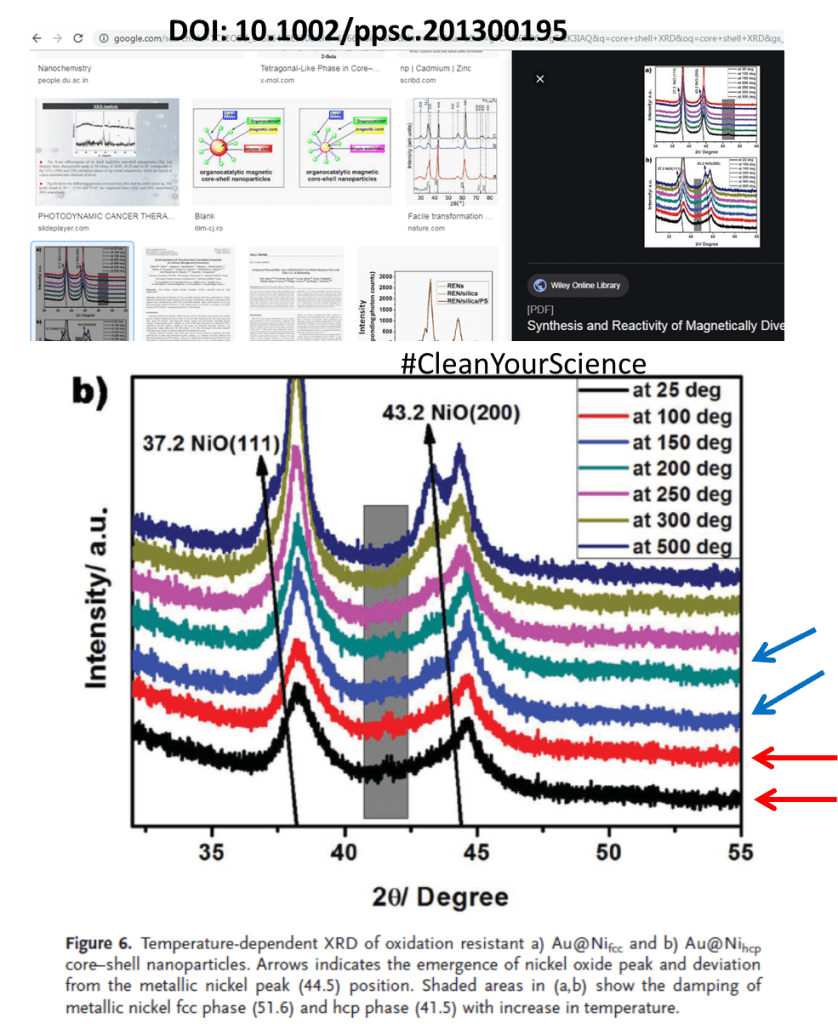

Mendiratta et al Particle 2019 doi: 10.1002/ppsc.201900195

If you think that two pairs of identical spectra in one figure is not impressive, check the next figure which I found using combination of words “global warming” and XRD. Scientific Reports is often referred simply as “Nature journal” and authors had to pay $1790 to publish the following figures:

Chowdhury & Balasubramanian, Scientific Reports 2016. doi: 10.1038/srep21537

I don’t think it is necessary to mark these figures to realize that four XRD patterns are identical in the Figure 2a (left) and four spectra are identical in the Figure 2c (right). Some points were possibly modified but otherwise it is the same pattern/spectrum quadruplicated to represent different holey graphene samples. The paper cites these materials as excellent adsorbents for CO2. Somehow I don’t believe that this research will help to fight global warming. Not yet on Pubpeer!

It would be wrong to assume that the problem of zombie spectra is located only within certain geographical areas. Here is for example a paper published by two UK scientists Eric Masika and Robert Mokaya representing University of Nottingham. Robert Mokaya is “Professor of Materials Chemistry and Pro-Vice-Chancellor for Global Engagement, Faculty of VC’s Office”, according to his web page.

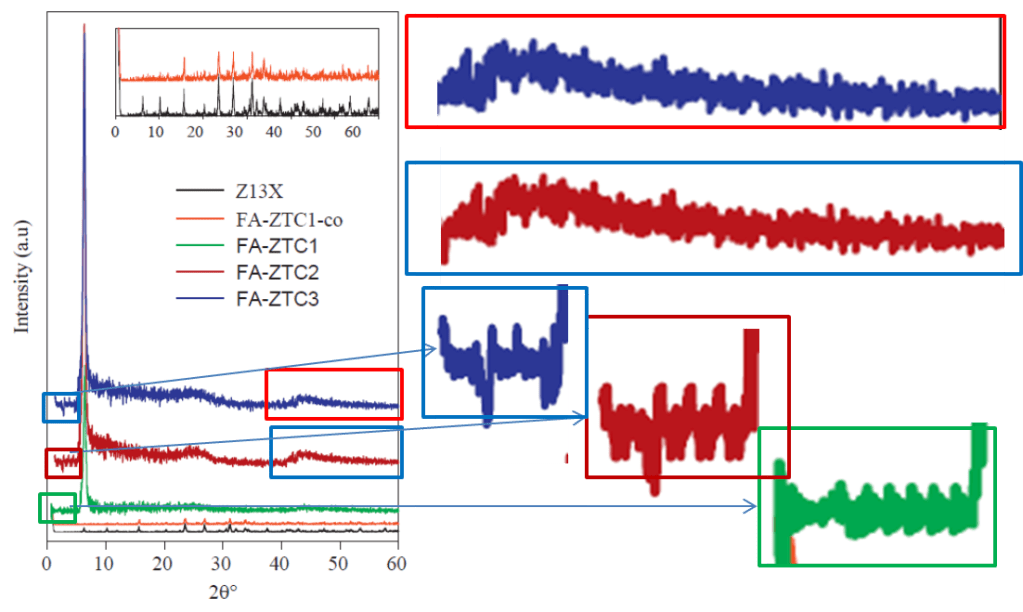

This paper was found using combination of words “sorption” and “XRD” after some scrolling down the page. First we look at Figure 1 of Masika & Mokaya 2013, which shows unusual combination of small repetitions and identical noise in blue and brown patterns for certain range of angles. At lower angles the patterns for some strange reason become different as it should be for two different materials.

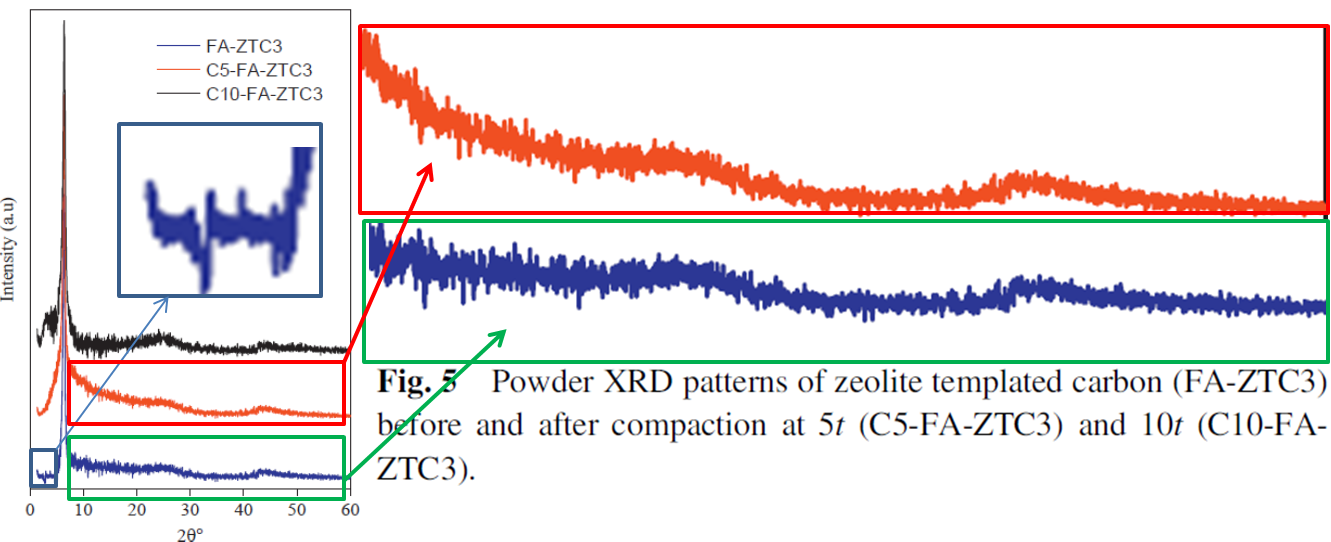

Figure 5 suggest that authors subtracted some background from one pattern to present it as different and attached these pieces to something else for better results. The journal which published these zombie XRD patterns is Progress in Natural Science: Materials International (IF=3.3) by Elsevier.

For those readers who want to enjoy this figure a second time, it was published again in 2013 in Energy & Environmental Science (DOI: 10.1039/c3ee42239a), an RSC journal with IF=33 (!) at the moment. No doubt 46 citations of Eric Masika’s and Robert Mokaya’s paper helped to achieve this impressive impact factor. Not yet on PubPeer.

Left: doi: 10.1016/j.pnsc.2013.04.007 Right: doi: 10.1039/c3ee42239a

Just for fun I tested completely absurd combinations of words. For example “UFO” with  “Raman spectra”. It took me exactly 3 minutes to find that UFOs (doi: 10.1039/C8AN00341F) prefer to present the same spectra in multiple numbers in the same figures. Figure 4 offers two examples (f and d). Figure 4d presents unconvincing attempts to hide similarity between all 4 (!) spectra by compressing them along vertical axis. Yet for Figure 4f the authors realized that their attempts were an effort wasted (nobody reads their papers anyway, right?) and decided to dump 3 identical spectra on the same plot without any modifications. Green spectrum is likely also to be the same but slightly compressed.

Das & Soni, RSC Analyst 2018 doi: 10.1039/C8AN00341F

Also, XRD patterns  in Figure 1( (c) Rh nanocube and (d) Rh tripod nanoparticles) also appear to be identical (not shown here) in this paper published by the Royal Society of Chemistry journal Analyst (IF=4). I did not bother to check other figures.  Anyone interested to find out how UFOs are related to the copy-paste art in this paper must pay £42.50 to RSC. Not yet on PubPeer.

If you think that four identical spectra in one graph is not enough, here is example with five (doi: 10.1039/c8ra06896h), and this time it is from the Linköping University in Sweden:

Pirhashemi et al RSC Advances 2018 doi: 10.1039/c8ra06896h

There is only some vertical compression distinguishing between the top 5 XRD patterns, all allegedly showing different materials.

After a hard day’s night, I tried a Google search using “Beatles” and “XRD”.  Let it be: This research field is clean, no XRD patterns were found.  The search for “Gandalf” and “XRD” actually returned some XRD figures but not many. Maybe Gandalf used his magic to make them clean.

You might think that examples shown above are too difficult to uncover. There are many easier cases however, searchable by different combinations of words, for example “nanohybrid” and “Raman”. The next example shows Raman spectra which are not just a smoking gun but rather smoke columns from some massive carpet bombing. Not yet on PubPeer.

Gupta et al Int J Hydrogen Energy 2019 doi: 10.1016/j.ijhydene.2019.03.273

Authors of this paper could only hope that nobody will ever look into their work properly. Possibly they were right, at least about reviewers and editors who accepted it for publication. International Journal of Hydrogen Energy has IF =4.084 by the way. A Google image search with the name of first author “Anshul Gupta” and “Raman spectra” shows more copy-paste (not yet on PubPeer).

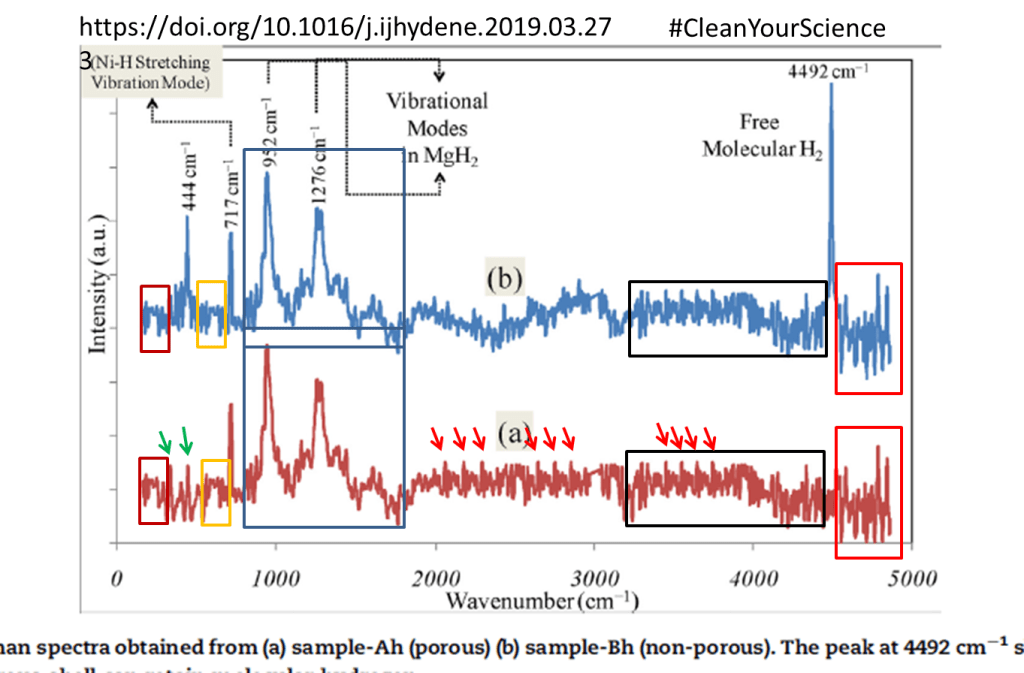

What we see here is obviously old “spectrum” with new peaks, e.g. one at 2012 cm-1 and one peak cut off at  952 cm-1.  The main achievement of this paper is claimed to be hydrogen storage “enhancement by a factor of 7 × 103 (7,00,000%)”. Moving on to next examples.

You might think such problems are found only in low-rank journals and well-forgotten papers with no citations. Rare as it might be (no statistics available), but even “high profile”  journals are not free from zombie spectra. Recent PubPeer entries provide some illustrations. For example, the supporting information file of a paper published in Advanced Functional Materials (IF=15.6), coauthored by RSC member David Evans and cited 65 times, shows the following figure with an extra peak added to an otherwise identical XRD pattern:

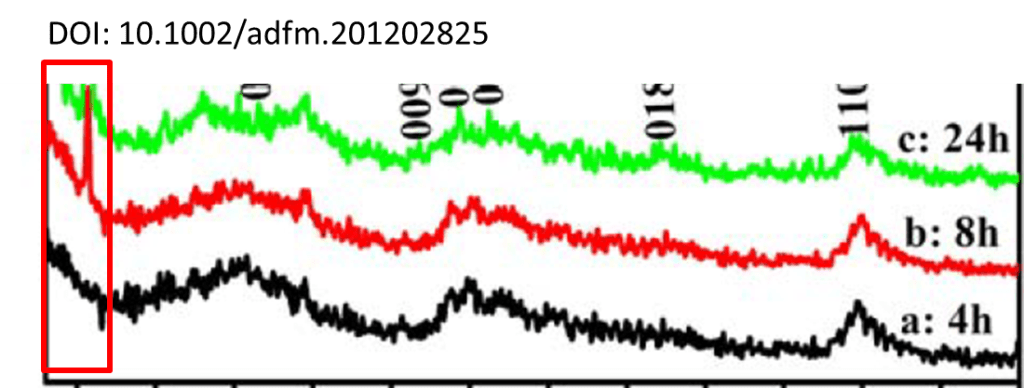

Shao et al Adv Funct Mat 2013 doi: 10.1002/adfm.201202825

Next example is from Journal of Materials Chemistry (IF=10.7), the paper was cited 113 times.

Zhang et al J Mat Chem 2013 doi: 10.1039/c3ta12767b

The PubPeer thread for that paper includes copy-pasted fragments of the same spectra in several other publications with one name in common: Prof. Xiangke Wang.  Impressive PubPeer record of that author includes now over 40 papers with many examples of zombie spectra. Same Wang is responsible for a paper published in Advanced Materials (IF=25.8), cited over 570 times. The noise in the Raman spectra of GO and sulfonated graphene is unexpectedly similar:

Zhao et al, Adv Materials 2011. doi: 10.1002/adma.201101007

Discussion

  • Fashionable research fields and flashy buzzwords attract problematic figures. Nanohybrids, nanoparticles, nanospheres, nanocomposites, nanobelts,  nanoscrolls, whatever “nano” are some of obvious choices. Words like “superior”, “graphene”, “hierarchical”, “designed”  could be a good addition. Think about research tops of past years like “fullerenes”, “nanotubes,” “superconductivity”. These might be worth to look into!

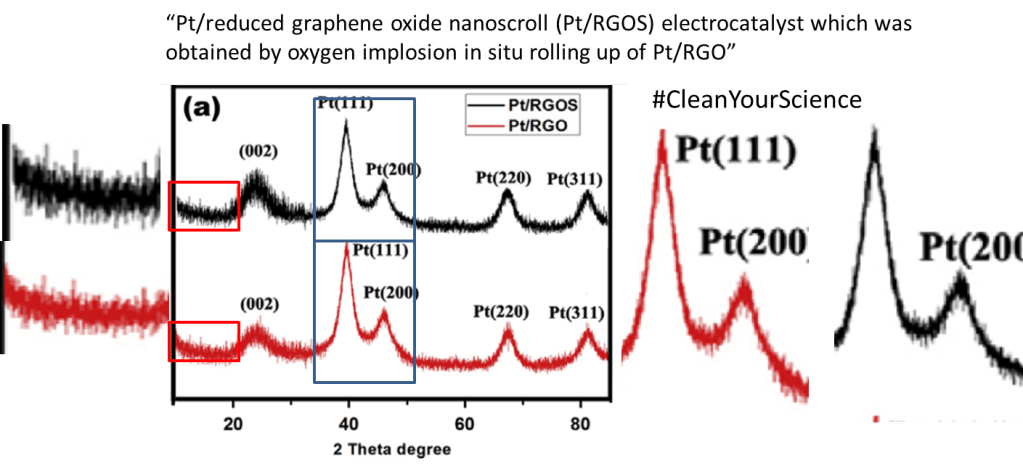

Here I tested my own suggestion by typing “nanoscrolls” and “XRD”. First page of images showed one with sudden change in amplitude of noise for one part of patterns (doi:10.1088/0957-4484/24/23/235401). I decided to look closer. Authors invested a good deal of time (possibly more than required to record real pattern) into combining pieces of this puzzle into zombie patterns. Some parts are extremely similar, some not. Not yet on PubPeer.

Liu et al Nanotechnology (IOP) 2013 doi:10.1088/0957-4484/24/23/235401
  • One can renew past search while applying time limitations to skip already searched papers. Something like “core shell”, “XRD” and selecting 2012-2014 for time interval is worth to try. Maybe even journal titles can be used as well.
  • Add your specific material to the search, like Fe3O4, SiO2, “nanotube” in combination with “nano” or “XRD”, “spectra” etc.  You can search also using names of city, country or the academic institution.

Again as a test I picked up “nanodiamonds” and XRD after writing this text. Third line of images shows me something with bright colors and unusual change in the noise  amplitude (not yet on PubPeer) doi: 10.1109/TDEI.2015.004678.

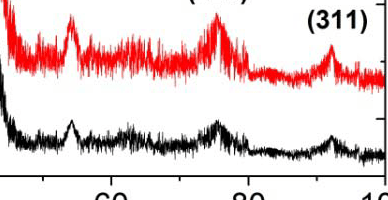

Shukla & Aiyer, IEEE Transactions Dielectrics & Electrical Insulation 2015. doi: 10.1109/TDEI.2015.004678.

What we see here is a strong difference for two major peaks below ~45 degrees and a very strange pattern at higher angles. The patterns in this angle region are almost identical except for compression along vertical axis. I intentionally left it as it was. Some parts are clearly identical and some are not. Can you spot it?

  • Combinations of rather bright colours and abnormal shape of peaks is something which often catches my attention. Many figures also show very strange background noise as if it was drawn by hand or smoothed to a degree of a continuous merge. In that case, if no repetition patterns are found these are not smoking guns (unfortunately).

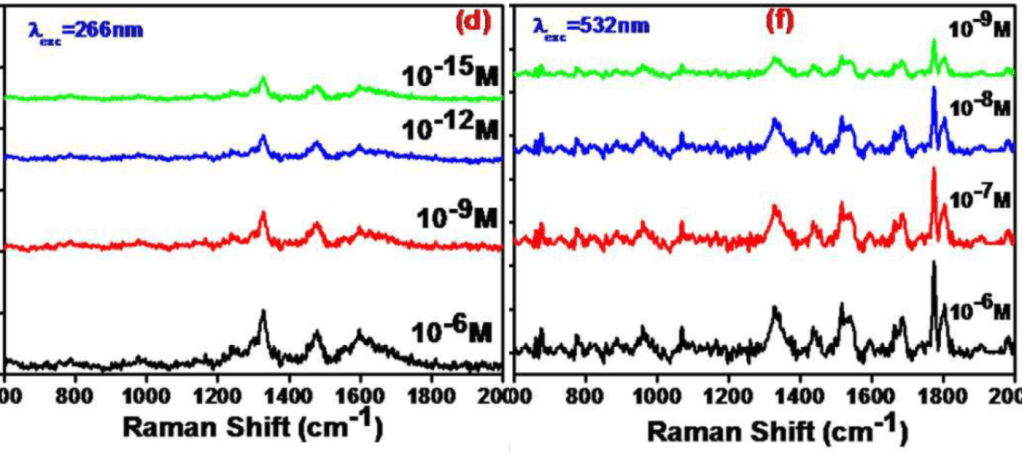

  •  Abrupt changes in frequency or the amplitude of noise are an alarm sign. It might happen due to natural reasons but very often this marks the point where parts of XRD pattern or fragments of  spectra were stitched together. In the worst cases one can even see some breaks between connected parts. Some figures of that kind I have real difficulty to explain:
Zhou et al J Phys D: Appl Phys 2017
doi: 10.1088/1361-6463/aa5445

I think it is secret message written using hieroglyphs. Only smart people are able understand it. I am not smart. The spectra supposed to be recorded in different spots of some sample. Some of the fragments connected by straight lines are very similar, some are not. Why reviewers have not questioned the meaning of that message I have no idea.

  • Some figures require really strong zoom-in to reveal problems, authors presumably trust that nobody is interested in details. That may be the case in many papers where data is nothing more but decoration, not expected to support any claims. Like that zombie XRD for example:
Yun et al PLOS One 2015 doi: 10.1371/journal.pone.0138614

One don’t need to be a dentist to find some similarities (and differences, marked) between the green and the blue XRD teeth patterns.

  • Problems are even more often found in supporting information (SI) files. Here is an example of what can be found by comparing two figures in SI files of two “high profile” papers:
Left: Hu et al Adv Mat Interfaces 2018 doi: 10.1002/admi.201800551; Right: Hu et al Adv Funct Materials 2017 doi: 10.1002/adfm.201702232

These two are figures are from Advanced Materials Interfaces (2018) IF=4.7 and Advanced Functional Materials (2017) IF =15.6. The noise is relatively weak in these figures but it is sufficient to identify identical spectra for different sets of materials. Two months after publication on PubPeer these papers are not yet corrected, nor have the authors responded.

Of course, I welcome everybody to add more hints to this small manual. Once again, let’s join our efforts in FlashMob #CleanYourScience. Start right now, and don’t stop!


Donate!

If you are interested to support my work, you can leave here a small tip of $5. Or several of small tips, just increase the amount as you like (2x=€10; 5x=€25). Your generous patronage of my journalism, however small it appears to you, will greatly help me with my legal costs.

€5.00
