Dr Tong’s illusions of nanotechnology

My regular contributor Smut Clyde will now lead you back on a trip to the magic world of "Nanotechnology", where tiny particles are created, sometimes in real chemical laboratories, sometimes in the fake world of the Photoshop. Dong Ge Tong, of Chengdu University of Technology in China, is not just a photoshopper, but also a true philosopher.

The world observed by the electron microscope is very large, but we can only record or present a small part of them. Whether this part of the record can scientifically reflect the real world observed by electron microscopy has become a matter of debate. Some people think that they should be unsuitable at the same time.”

Dr Dong Ge Tong, Confusian photoshop philosopher

My regular contributor Smut Clyde will now lead you back on a trip to the magic world of “Nanotechnology”, where tiny particles are created, sometimes in real chemical laboratories, sometimes in the fake world of the Photoshop. Nanotechnology is named as it is not just because the particles are so tiny, but also because the peer review is apparently so miniscule that everything goes and no questions are asked, except of: “please cite some of my publications.” Not everything in nanotechnology is small: the impact factor where such ridiculous fraud is published is rather big, and the money given in exchange of promises to cure cancer and deliver the world from all of its problems, is definitely not tiny at all.

We had the Indian nano-photoshop enthusiasts Prashant Sharma and Rashmi Madhuri (and even Madhuri’s pencil-swinging PhD advisor BB Prasad), but those Photoshop tinkerers were sure no great thinkers. But Dong Ge Tong, of Chengdu University of Technology in China, is a true philosopher, as his quote above proves, one of many thoughtful gems he left on PubPeer. Even in the face of ridicule, or real adversities like journal expressions of concerns, this man still sees his accuser as “a good person”.

Tales from nanographic ocean, by Smut Clyde

Lancelets fossilised in limestone? An Song-dynasty ink-wash painting of a bamboo grove? Or “Fig. 5 TEM images of the black anatase TiO2 nanoleaves prepared during SPP: … (e) 10 min.” ?

The following post dwells yet again upon curious phenomena encountered in nanotechnology journals. This is becoming a regular theme. Readers may be hoping for something especially outrageous about the present investigation, but life is full of disappointments. At least there are these charming images of luminescent deep-sea fish in the abyssal dark-field.

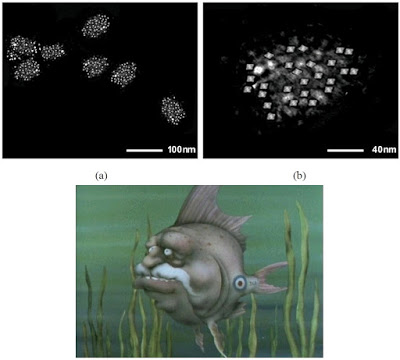

The bottom image belongs to Monty Python though. Dr Tong must be a fan!

Alternatively, they are fragments of carbon (in some unspecified phase) bedizened with nanocrystals of Rh2Ni. The way that each arrangement of nanocrystals recurs across multiple carbon flecks, and indeed across more than one habit of nanocrystal, can be ascribed to Sheldrake’s Morphogenetic Field. As can the flecks’ resemblance to Terry Gilliam drawings.

In “A Different Universe” (2008), physicist Robert P. Laughlin had some thoughts that shed a light on the state of the nanotechnology literature (or “advanced-materials” if you like):

“About halfway through the daylong program of my first review I saw a presentation by our electron microscopist that knocked my socks off. […] Her presentation was less a technical seminar than a National Geographic special on the Escalante staircase or the Himalayan foothills of Tibet. She showed a sequence of the most astonishing topographies, no two of which were the same. […] Then came a forest of grotesque gargoyles on stems planted at the edges of lakelike dimples, thirsty cauliflower creatures from another planet descending on New England to seek out ponds. After that a formidable mountain range with strange caps on the top resembling snow, as one might see from an airplane flying over Aspen or Katmandu.”

“At the scale visible to the electron microscope, every surface looked interesting. […] great talent would be required to take a dull electron micrograph of a surface.”
“The structures displayed by my colleague the electron microscopist are prototypical of what I call nanobaubles, fascinating and beautiful structures that develop spontaneously at small scales but have no known use except as entertainment.”

Within this literature of interest, we find a series of papers from a research group in Chengdu, Sichuan. Interest in them has blown up rapidly over just a few days, with no end of Tweeted incredulity, and a Reddit discussion, as well as the inevitable PubPeer threads that supplied most of the raw material for this post. So perhaps there is still some lingering relevance to the topic of nano-junk, and I am not simply flogging a dead low-hanging fruit in a barrel.

The earlier papers in this series appeared in journals from Elsevier and Springer, with unexceptional Impact Factors like 2.993 (Journal of Materials Science) and 2.687 (Materials Science). Following the “nano-compost” tradition, they announced such developments as antibacterial CuO2 nanosponges derived derived using pine-needle templates, and photocatalytic “biomorphic nickel oxide microtubes” derived from cotton through calcination, molecular substitution, and the full panoply of alchemical transformation. Promising superior battery performance, and hydrogen generation from catalysed photolysis of water, and superior pollutant detection, these papers were typical of the genre and in line with Professor Laughlin’s summary.

“…we dream to engineer new kinds of useful gadgets and products for practical use, such as early warning sensors for obnoxious smells or machines that render leftover banana peels into gasoline.”

But at some point the authors grew in ambition (or drew down a large research-project grant), for they switched to targeting Royal Society of Chemistry journals like J. Mat. Chem. A and Nanoscale (and ACS Applied Materials & Interfaces from the American equivalent), with three times the Impact Factor: IF = 9.931 and 7.233 respectively (and 8.097). One expects the peer-reviewing there to be correspondingly more stringent and demanding. Anyway, that is what raised these papers to the threshold of attention. For these august journals have brought us implausible images like these:

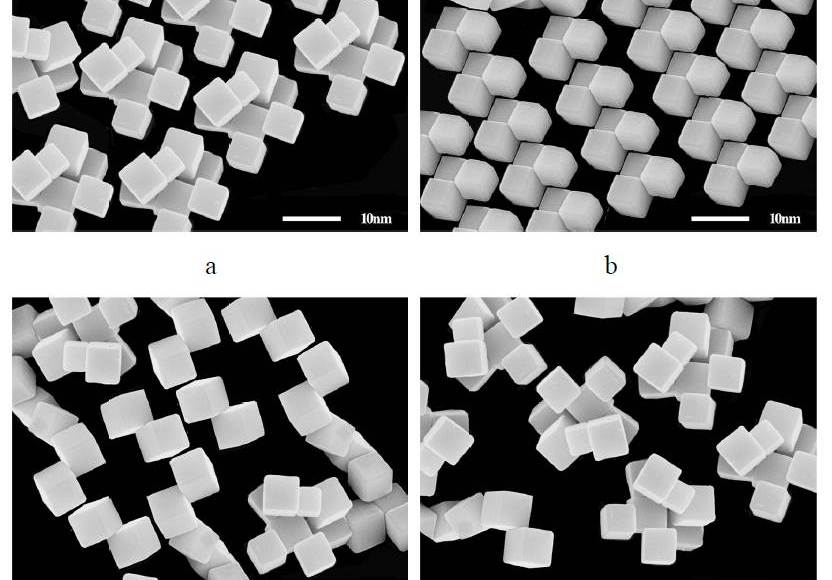

Mass-produced nano-scale Soma Cube or Rubik’s Cube components? A homage to the stacked-cube killing-fields of Q*bert? Their geometrical perfection and isometric projection are more reminiscent of Photoshop than of conventional STEM (Scanning Transmission Electron Microscopy).

Then it emerged that four of these papers recently and concurrently attracted Expressions of Concern from the editors of J. Mat. Chem. A and Nanoscale,

“in order to alert our readers to the fact that we are presently unable to confirm the accuracy of the data reported in the TEM images”.

The concern focussed on the STEM imagery, which calls out for verification. Apparently the original data files are unavailable in each case, so we read (repeatedly) that

“The authors are in the process of repeating the experiments to confirm the validity of the TEM images in the published Figures. This notice will be updated when a conclusive outcome is reached.”

These four papers:

1. Monodisperse Ni3Fe single-crystalline nanospheres as a highly efficient catalyst for the complete conversion of hydrous hydrazine to hydrogen at room temperature;

2. Preparation of face-centered-cubic indium nanocubes and their superior dehydrogenation activity towards aqueous hydrazine with the assistance of light;

3. Synthesis of octahedral, truncated octahedral, and cubic Rh2Ni nanocrystals and their structure–activity relationship for the decomposition of hydrazine in aqueous solution to hydrogen (the source of the luminescent fish);

4. Hollow amorphous NaFePO4 nanospheres as a high-capacity and high-rate cathode for sodium-ion batteries.

Dong Ge Tong (the group’s leader) responded in a couple of PubPeer threads to chide other commenters for their skepticism, and their inexperience with experimental observation, like here:

“The repetitive elements in the figure for a optimized sample under an electron microscope is normal. Thus, I sincerely hope you do an experiment yourself with a good sample to observe the repetitive elements under an electron microscope, rather than using computer graphics software to evaluate it. For a good sample, it can be see that there are lots of repetitive elements. Moreover, with some special dispersing addition, some special order you can see”.

It appears that images of geometrical clarity are within the grasp of anyone who has the patience to scan enough of the infinite universe of the Nanocosm and select the most aesthetic results. As Dr Tong teaches:

“The world observed by the electron microscope is very large, but we can only record or present a small part of them. Whether this part of the record can scientifically reflect the real world observed by electron microscopy has become a matter of debate. Some people think that they should be unsuitable at the same time. Just like you, I agree with you very much. However, in real experiments, because of the problems of sample preparation and equipment itself, it is possible to see the disagreeable places and the agreeable places together under the lens, but can not take them all together. And when you use one of them, you will select the one which is very pleasing to your eye. It is just like that when you’re looking for a job, you will use your favorite ID. But, you are the same as you. At the same time, I know you are a good person. Thank you very much for your comment.”

So there is a corner of the Nanocosm full of googly eyes:

It contributes to thread #5, “Mesoporous Face-Centered-Cubic In4Ni Alloy Nanorices: Superior Catalysts for Hydrazine Dehydrogenation in Aqueous Solution” (so far without Editorial comment). I was disappointed, by the way, to discover that “nanorices” is not the plural of “nanorix”, but simply a fresh coinage for Photoshop-cloned nanoparticles inspired by short-grain rice.

Not far from the nanorices lies the ‘nanococoon zone’, as featured in #6: Mesoporous amorphous FeOF nanococoons for high-rate and long-life rechargeable sodium-ion batteries.

Thread #7 is Monodisperse CuB23 nanoparticles grown on graphene as highly efficient catalysts for unactivated alkyl halide Heck coupling and levulinic acid hydrogenation. This corner of the Nanocosm is devoted to exercises in decoupage – cutting out different shapes from the same sheet of nanoparticle-adorned graphene. With one outline, the sheet becomes a dog’s head, while another turns it into a left-facing profile of Elvis (as played by Bruce Campbell).

The wording of those four Concerned Expressions (and any more that are still to come) leaves two possibilities open. The authors might have been invited to repeat the observations, and to replace the contested data-free Figures with better-documented substitutes (and if serendipitous Soma-cube configurations of nanocubes are really so frequent, this should not be difficult)… or they might have offered to do so, with the editors accepting the offer in the interests of a fair process. But the sudden appearance of four Notices, unprovoked by any obvious harassment from outsiders, suggest that the RSC publishing arm has belatedly lost tolerance for CGI and Photoshop as substitutes for actual microscopy.

Anyway, we learn from Dr Tong that the credit for exploring the Nanocosm through electron microphotography belongs to a well-trained and obsessive-compulsive student:

“There is a disease in the world called obsessive compulsive disorder, like Holmes in the movie. The world is so large under the electron microscope that if you want, you can find two identical ones. Electron microscopy is also called aesthetics, and how you would like to express the world you see. If you’ve done the experiment, you know there’s a word in the electron microscope experiment called “find”, to find what you want to say. So, sincerely hope you to do a good sample and bad sample of the electron microscope experiment comparison, you will understand what is lucky, what is incredible. If you have obsessive-compulsive disorder of symmetrical beauty, when you face such a vast and beautiful world, how would you like to express it? I bet you understand. The student has been doing the optimized experiments for two years, and as her teacher, I can only silently support her. If you have a student and she (or he) get a beautiful picture, have you asked your student if it was found, or is it the whole world? For high-resolution electron microscopy, you know, “finding” is the basic requirement. Luck is very important.”

Student, meet bus.

Problematic aspects are not confined to the STEM Figures. A recurring feature of these papers are X-Ray Diffraction profiles in which a ‘flatline’ section of the pattern turns out on close inspection to consist of a single shorter rusty-sawblade segment, repeated several times over. In #6:

The coincidences continue to accumulate when one of these synthetic-flatline XRD profiles is repeated (down to the level of pixels of noise) and presented as the result of several independent but well-replicated experiments. From #1:

From #7:

Further coincidences occur with those luminescent fish where we began (#3). Or rather, those dark-field STEM images of carbon nanovehicles for three kinds of nanocrystals of Rh2Ni. Who would have expected that after a Black / White reversal, these carbonaceous flecks would turn out to match other flecks found in #1, in light-field STEM, where they were freighted with Ni3Fe spherical monocrystals instead?

I leave the last word to Dr Tong.

“We respect you very much. You are all good people. Because of our limited knowledge, in fact, some experimental results we do not understand enough until now, just only to think and apply them simply. These results may include other useful information. Yours valuable comments will help us to think and understand the experimental results more deeply. Thank you very much for your comments. Thanks a lot.”

[h/t Cloacibacterium Haliotis who started the dogpile]



If you are interested to support my work, you can leave here a small tip of $5. Or several of small tips, just increase the amount as you like (2x=€10; 5x=€25). Your generous patronage of my journalism will be most appreciated!


18 comments on “Dr Tong’s illusions of nanotechnology

  1. If Aristophanes had written a comedy about using nanoparticles to accelerate chemical reactions, he could have titled it “Catalysistrata”.


  2. Looks like nanoscience has rather ironically been accurately named. Very small science, very much garbage published by vanity presses. All of these journals should be hived off into the equivalent of the dark web of pseudoscience, and dropped out of the regular search engines, online libraries, etc. Let them have their fun and leave the real scientists to carry on. Is it a coincidence that most of the major perpetrators work at state-run institutes where jobs and resources are awarded on a political rather than meritocratic basis? This crap has zero impact beyond padding the CVs of the producers. Love the zen musings, though.


  3. The problem starts at the top- the Editor in Chief of Elsevier Bioelectronics and Biosensors,(AFP Turner) publishes in his own journal (conflict of interest) , mentors shady imposters like Ashutosh Tiwari and endorses predatory conferences and Journals. They cite papers of each other (citation cartel) spend most time in shady conferences on cruise lines or expensive cities wining and dining on tax payer dime talking of curing cancer and solving world energy problems. Meanwhile their students and lab members are busy photoshopping data and publishing in paywalled journals.
    In Nano Science–Out of sight (paywalled) is out of mind.


  4. Predatory conference brought to you by OMICS of course.


  5. I’m speechless. Another nano fraud.


  6. Hi Leonid, I got in contact with a guy posting on reddit thread. He already sent emails to the journal editors, a couple of them, and to the university of Dr. Tong, but no response yet.


  7. Hi Leonid, the university PM-ed me on weibo (a China version of tweeter) that they have been made aware of the situation. And they are in the process of confirming some facts.


  8. Dead-horse-flogging activities have continued in the Pubpeer threads. In the Nanorice-grain paper, many of the Supplementary Figures purport to show the development of Nanorices from different chemical mixtures… in fact they are collages worthy of Hannah Höch, based on random SEMs of textured surfaces that have been cut up, duplicated and rearranged.

    Some of the repeating pictorial elements in these collages have been vignetted and turned into oval ‘particles’ by darkening the background around them:

    Possibly they were intended as a homage to the Willendorf Venus.


  9. The ‘nanococoon’ Supplementary Figures are also full of examples of SEMs of textured surfaces, divided up into nascent nanoparticles by drawing dark lines between them with a Photoshop crayon.
    Were some of the arrangements of imaginary particles intended as a homage to Olympic sports pictograms? It would be irresponsible not to speculate.


  10. I have to mention that nearly 80% of the Chinese paper on nanofraud is doctored.

    —From what I have seen in Chinese Universities


  11. Pingback: The adventures of Gui and Hui in Nano-land – For Better Science

  12. any update on this story?


  13. Pingback: Carrots and sticks for fraudsters at Royal Society of Chemistry – For Better Science

  14. Pingback: Zombie fingers inside corroded nano-piecrusts – For Better Science

  15. Smut Clyde

    Best retraction EVER:!divAbstract

    Retraction: Mesoporous multiwalled carbon nanotubes as supports for monodispersed iron–boron catalysts: improved hydrogen generation from hydrous hydrazine decomposition

    We, the authors, hereby wholly retract this Journal of Materials Chemistry A article due to concerns with the reliability of the data presented in Fig. 2, 3, 9a and S4.

    In Fig. 2, 9a and S4, the similarities between the different carbon nanotubes, particles and background are possibly due to a third party company’s failure to turn off the automatic beauty processing function during image acquisition, which resulted from the bug of its independently developed multidimensional TEM photography system. We used those images without any editing or modification.

    In addition, there are repeating fragments in the noise resonance in Fig. 3. As we do not have the original raw data, we cannot judge the influence of this on the overall reliability of the published paper.

    We, the authors, repeated the experiments and believe that the scientific content and conclusions of the related studies presented by the pictures in the published paper can be reproduced. However, due to the large number of images, it is not possible to replace the published images with the new figures. Therefore, to protect the rigor of the scientific record, we decided to retract this article on our own initiative.

    Signed: Dong Ge Tong (on behalf of all authors).

    Date: 6th March 2020.


  16. Smut Clyde

    “Mesoporous Face-Centered-Cubic In4Ni Alloy Nanorices: Superior Catalysts for Hydrazine Dehydrogenation in Aqueous Solution” remains at the “Expression of Concern” level.

    As of July 16, 2019, the Editor issues an Expression of Concern to advise readers of potentially concerning data in this Article (ACS Appl. Mater. Interfaces2016, 8 (38), 25268–25278). Figure 1a, which is also in the Table of Contents graphic, is a TEM image that may have been inappropriately manipulated; however, the original data is unavailable to confirm potential alterations.

    The ACS Editors seem to have have accepted that because there are no original data, they cannot take the issue any further.


  17. TigerBB8

    Just received an update, Dr. Tong has just been fired from his university. The school waited for all his grad students graduated to let him go.
